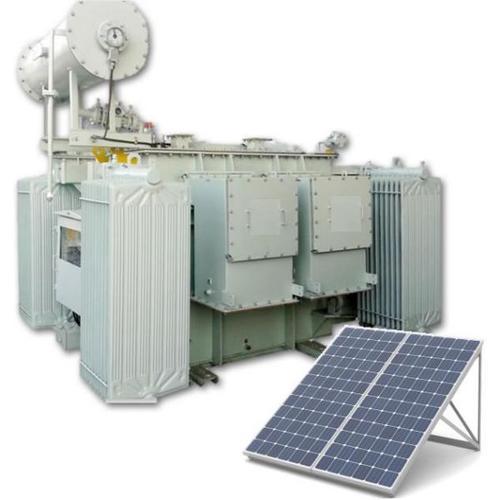

SOLAR TRANSFORMER [IDT]
VERTO IS SPECIALIZED IN SOLAR & WIND APPLICATION TRANSFORMERS
![](https://www.vertoengg.com/wp-content/uploads/2022/04/solar-transform.jpg)
SOLAR TRANSFORMER [MULTIWINDING]
Multiple winding transformers, also known as a multi-coil, or multi winding transformer, contain more than one secondary coil, hence their name, on a common laminated core.

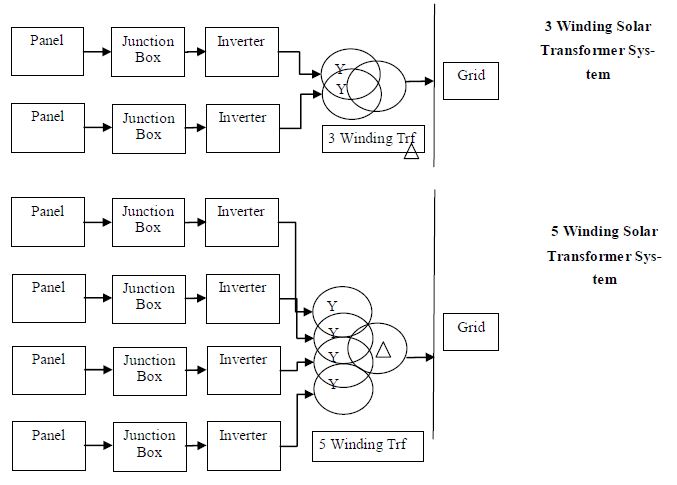

Multiple Winding Transformers can also be used to provide either a step-up, a step-down, or a combination of both between the various windings. In fact a multiple winding transformers can have several secondary windings on the same core [3,4,5 Winding].

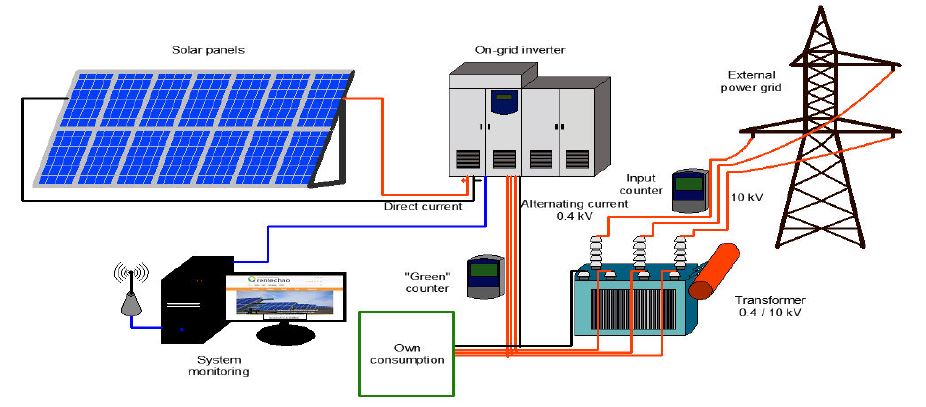

Solar inverters or PV inverters for photovoltaic systems transform DC-power generated from the solar modules into AC power and feed this power into the network. Special multiple winding design of the transformer enables to connect several PV panel strings to the grid with minor number of transformers in total.
![](https://www.vertoengg.com/wp-content/uploads/2022/04/solar-tramsformer.jpg)
Multiple winding transformers, also known as a multi-coil, or multi winding transformer, contain more than one secondary coil, hence their name, on a common laminated core.
Multiple Winding Transformers can also be used to provide either a step-up, a step-down, or a combination of both between the various windings. In fact a multiple winding transformers can have several secondary windings on the same core [3,4,5 Winding].
Solar inverters or PV inverters for photovoltaic systems transform DC-power generated from the solar modules into AC power and feed this power into the network. Special multiple winding design of the transformer enables to connect several PV panel strings to the grid with minor number of transformers in total.
Advantages
- Savings in HT breakers & Cable.
- Number of windings can be utilize at a time.
- 33% savings in winding material.
![](https://www.vertoengg.com/wp-content/uploads/2022/04/solar-tramsformer2.jpg)
This type of transformer is used in applications where the transformer is to be installed in harsh climatic conditions (smoke, pollution, dusty environment,etc.) or if the transformer is KNAN cooling type.
![](https://www.vertoengg.com/wp-content/uploads/2022/03/auto-transformer3.jpg)
Auto Transformer
An autotransformer (sometimes called auto step down transformer) is an electrical transformer with only one winding. In an autotransformer, portions of the same winding act as both the primary and secondary sides of the transformer.
![lightning transformer](https://www.vertoengg.com/wp-content/uploads/2022/03/lightning-transformer.jpg)
lightening transformers
Electrically isolating of the lighting load from main load. Better control on protection systems due to separation of neutral of lighting load & main load
